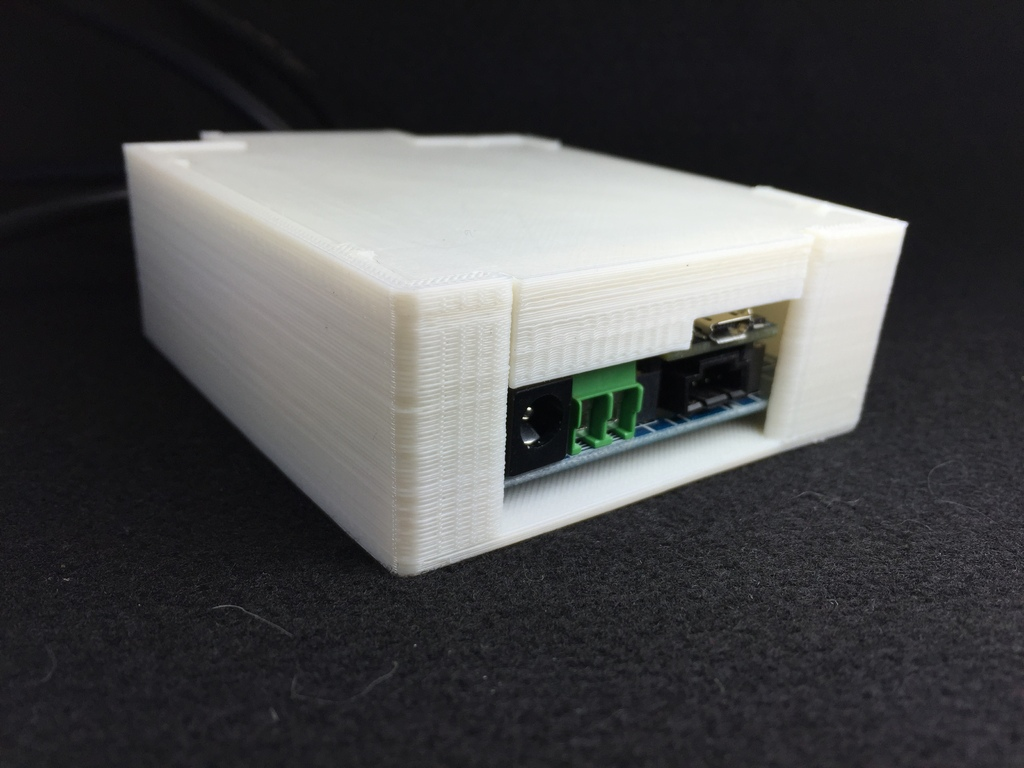

Control Everything Photon Relay Enclosure

This is a simple enclosure for Relay Shield for Particle Photon I²C 2-Channel SPDT 10-Amp 6 Programmable Digital Input Output. The top is held in place by small tabs.

3D model and more available at [ thingiverse.com ].
